Software:

iSYSTEM provides a range of embedded software and hardware tool solutions that work hand-in-hand to help you ensure that your application code fulfils the relevant functional safety standards, or improve the quality of your embedded software. The addition of iSYSTEM further enhances TASKING’s safety and security-oriented software ecosystem and broadens its capabilities as a one-stop shop for embedded software development tools and services with a strong emphasis on the automotive safety market and its related applications.

winIDEA - IDE, Debug and Trace Tool

Our Integrated Development Environment (IDE), providing the window into the inner workings of your embedded target. Supporting a wide range of semiconductor vendor's products, this established software delivers a minimally invasive interface to your microcontroller.

Key Benefits:

  • Import source code
  • Edit, build and flash embedded software
  • Display code execution
  • Watch the variables in real time
  • Capture and visualize program and data trace
  • Get an insight into an AUTOSAR application
  • Correlate microcontroller activity with network messages and signals
  • Automate and optimize with scripting

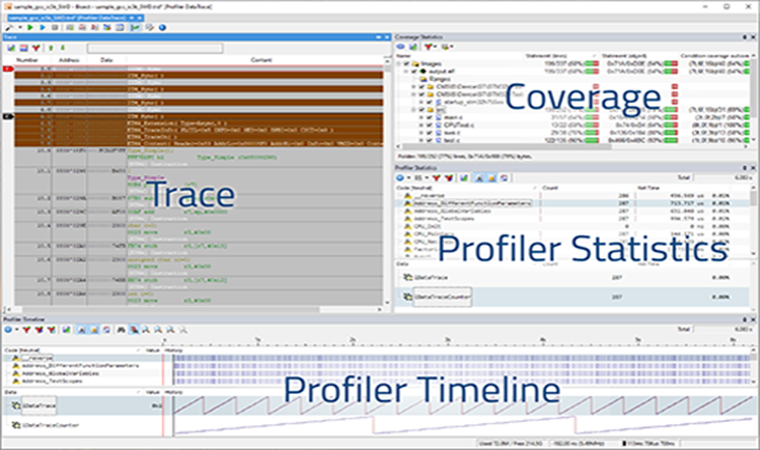

Analyzer - Profiling and Coverage Tool

Our Integrated Development Environment (IDE), providing the window into the inner workings of your embedded target. Supporting a wide range of semiconductor vendor's products, this established software delivers a minimally invasive interface to your microcontroller.

Key Benefits:

  • Import source code
  • Edit, build and flash embedded software
  • Display code execution
  • Watch the variables in real time
  • Capture and visualize program and data trace
  • Get an insight into an AUTOSAR application
  • Correlate microcontroller activity with network messages and signals
  • Automate and optimize with scripting

isystem.connect -Automation API

The isystem.connect SDK provides a programming interface in various programming languages, such as Python, Perl, C# and Java, thus providing the ultimate in flexibility.

testIDEA -Software Test Tool

The testIDEA environment simplifies the development of unit tests for embedded applications. By making use of the winIDEA environment, this application makes it easy to locate source code functions and generate test cases for them.

daqIDEA -Visualization Tool

daqIDEA is an effective tool for graphical presentation of large data sets acquired by winIDEA. It displays values for different variables as a 2D chart and as a table of numeric values and runs as a separate application along winIDEA.

Hardware:

BlueBox -Debug & Trace

If you are in need of an embedded software development platform that does more, much more, than just debugging, then our family of BlueBox Debug and Trace tools is the hardware you are looking for. Fully integrated into our winIDEA IDE, these hardware tools provide the link between your chosen microcontroller platform’s on-chip debug implementation and your development PC.

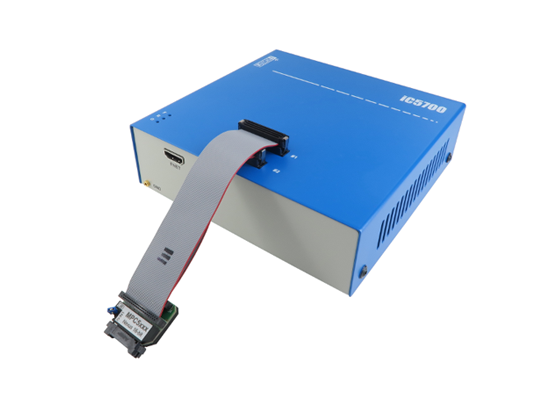

iC5700

The iC5700 introduces a new technology architecture to future-proof it for debugging and testing of complex embedded systems. The last decade has seen a steady increase in multi-core and multi-processor, system-on-chip (SoC) processing platforms, with the pace of integration being especially pronounced in the automotive industry. Recognizing this trend and its importance, this BlueBox features a new, high performance, internal data bus named FNet.

Technical Data:

Communication interfaces to PC USB 3.0, 10/100 Ethernet
Debug signal valid input voltage range 1.8V to 5.5V DC
Trace Buffer Size 1GB
Trace Bandwidth up to 250MHz in parallel mode, up to 5Gbps in serial mode
Trace Port Support Nexus, ETM, HSSTP
FNET Interface 1 (up to 10Gbps), expandable to 4 (IOM6 Hub optional)
Supported Processor Architectures Infineon AURIX™ Power Architecture® Renesas RH850 ARM® Cortex™-M, Cortex™-A and Cortex™-R

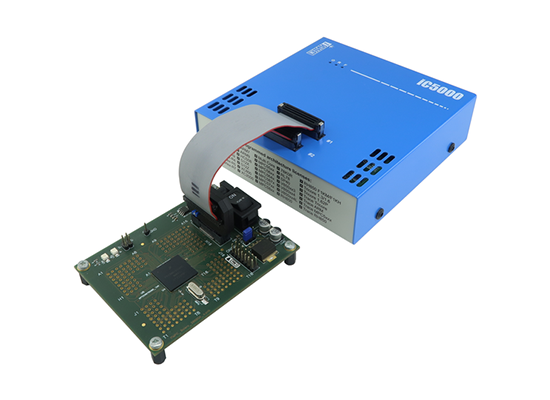

iC5000

As an all-round development tool, the iC5000 supports almost all 32-microcontrollers, their debug interfaces and trace technologies. Through its tried and tested ribbon-cable interface, a range of adapters are available to enable interfacing to all major connector types found on semiconductor vendor’s development boards or even your own prototyping hardware.

Technical Data:

Communication interfaces to PC USB 3.0, 10/100 Ethernet
Debug signal valid input voltage range 1.8V to 5.5V DC
Trace Buffer Size 256 MB
Trace Bandwidth up to 216 MHz
Trace Port Support Nexus, ETM
Supported Processor Architectures ARM® Cortex™-M, Cortex™-A and Cortex™-R Infineon AURIX™ Power Architecture® Renesas RH850
For a more detailed comparison of iSYSTEM BlueBox hardware refer to Technical Note

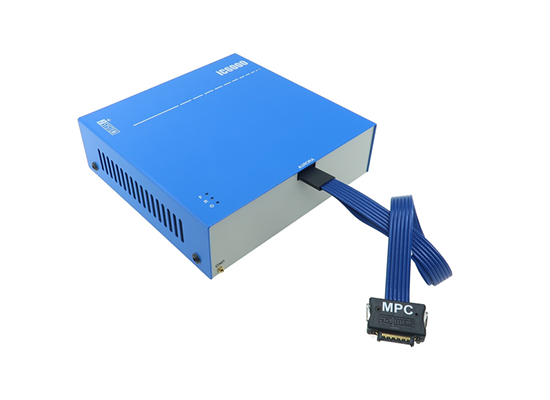

iC6000

Designed specifically to support the high-speed serial interfaces featured on advanced 32-bit microcontrollers, the iC6000 is a development tool for tackling some of the most challenging multi-core embedded software development challenges. Featuring an AURORA interface, a serial protocol defined by Xilinx, this BlueBox technology can extract trace data at speeds of up to 15 Gbps and features 8GB of SRAM for local buffering of the data.

Technical Data:

Communication interfaces to PC USB 3.0, 10/100 Ethernet
Debug signal valid input voltage range 1.8V to 5.5V DC
Trace Buffer Size 8GB
Trace Bandwidth up to 15 Gbps
Trace Port Support Aurora
Supported Processor Architectures Renesas RH850

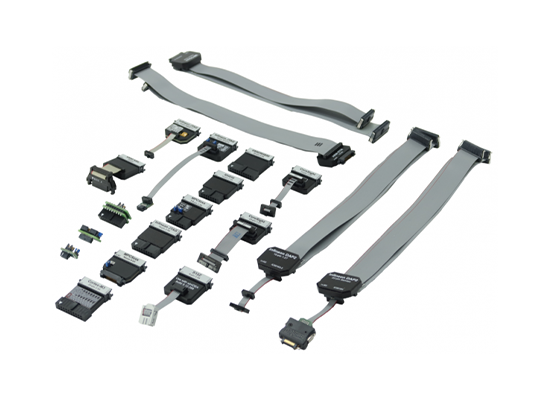

Debug Adapters

One thing is sure in the life of an embedded developer - your next microcontroller development board will be fitted with a different debug connector to the one used in your previous design.

Not to worry - at iSYSTEM we have seen almost every single connector and pin-pitch ever used.

To ensure you are up-and-running as quickly as possible, we have a range of Debug Adapters suitable for connectors featuring everything from simple debug through to full trace interfaces.
