NI mioDAQ is a USB data acquisition (DAQ) device that combines modern measurement technology with a simplified user experience. Engineers use mioDAQ to take ±10V measurements, build electromechanical test systems, and validate complex electronic designs.
Pair mioDAQ with your favorite software including NI’s free logging software, or use APIs and example programs for NI LabVIEW, Python, and C/C++.
| Measurement | Voltage (±10 V) with Sensor Power |
Temperature | Sound/Vibration | Strain/Bridge |
|---|---|---|---|---|

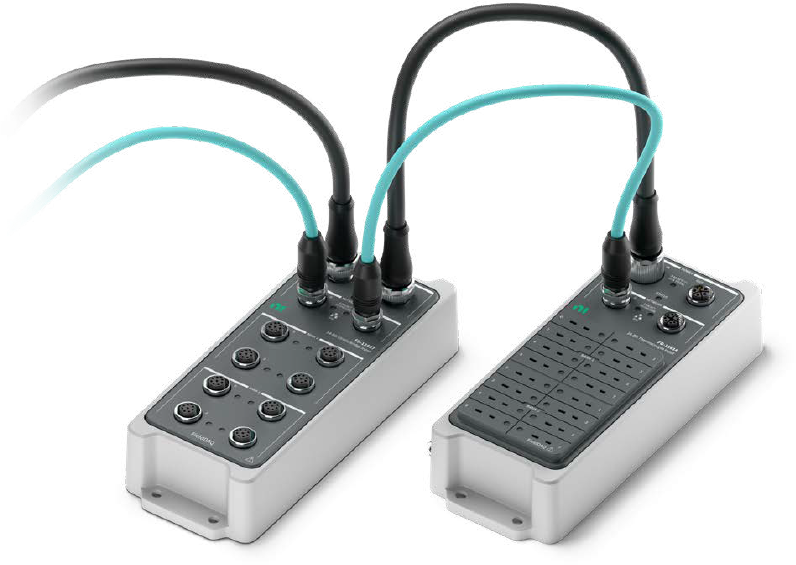

| FieldDAQ model | FD-11601 | FD-11614 | FD-11634 | FD-11637 |
| Part Number | 790065-01 | 790064-01 | 790066-01 | 785641-01 |
| Channel Count | 8 | 16 | 8 | 8 |
| Supported Sensors | ±10 V analog input with sensor power | Thermocouple type: J, K, T, E, N, B, R, S | IEPE accelerometers and microphones | Strain gage: quarter-, half-, and full-bridge |
| Input Connector Type | 5-pin A-coded M12 connectors | Universal miniature thermocouple jack | 8-pin A-coded M12 connectors | 8-pin A-coded M12 connectors |
| Resolution | 24 bits | 24 bits | 24 bits | 24 bits |
| Sample Rate (Simultaneous) | Up to 102.4 kS/s/ch | Up to 85 S/s/ch | Up to 102.4 kS/s/ch | Up to 102.4 kS/s/ch |
| Sensor Power or Excitation Output | 5 V–24 V, 600 mW per channel | N/A | 4 mA | 3 V, 5 V, or 10 V |
| Filtering | Anti-alias, Butterworth, comb filtering | 50–60 Hz rejection | Anti-alias, Butterworth, comb filtering | Anti-alias, Butterworth, comb filtering |
| Isolation | Ch-Ch isolation 60 VDC working, 1000 VRMS withstand | |||
